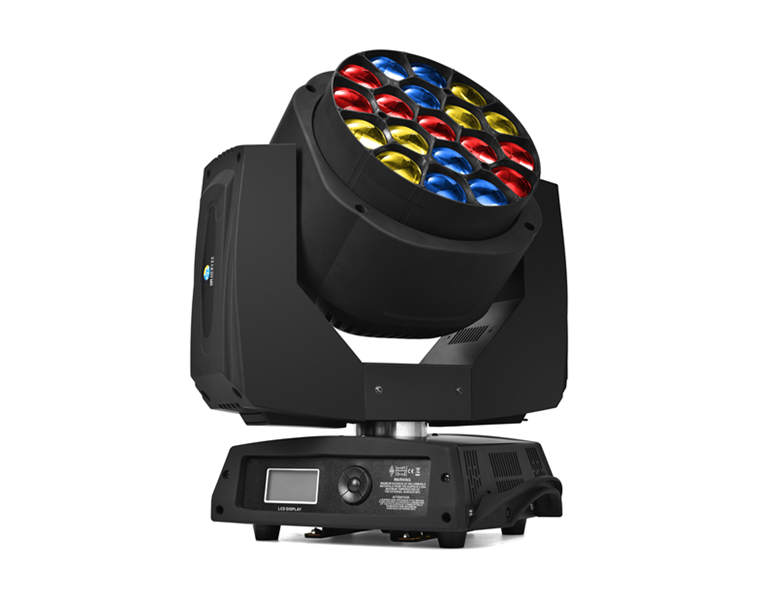

BRIEF High brightness LED: Osram Ostar 19x15w 4IN1 RGBW Invisible front grid: Compact and unique honeycomb design Three effects: Uniform wash,mid-air parallel beam, spectacular built-in graphic effects Wonderful effects for projection use: " Kaleidoscope" and "Vortex" Excellent zoom angle: 4-60°,suitable for small and big applications Buil-in Shapes: Easy control Individual LED control: Benefit for dynamic effect Front lens: Bi-directional and continuous rotating CTO: Linear controlled 2500-8000K.
SPECIFICATION POWER SUPPLIES AC100-240V 50/60Hz
OPTICS Light Source ：19×15W Osram Ostar RGBW LEDs,50,000 h. Color temperature: 2500-8000k adjustable
EFFECTS SECTION Individual LED control for each parameter 4°-60°Electronic Zoom angle Three operating modes: Wash, beam, Effect Front Lens Bi-directional continuous Rotation Digital Wash-Beam Framing effect Beam edge softening control (in Wash mode) 0-100% linear electronic dimmer Adjustable speed stop/strobe effect Dedicated channel for color temperature setting RGBW auto-tuning

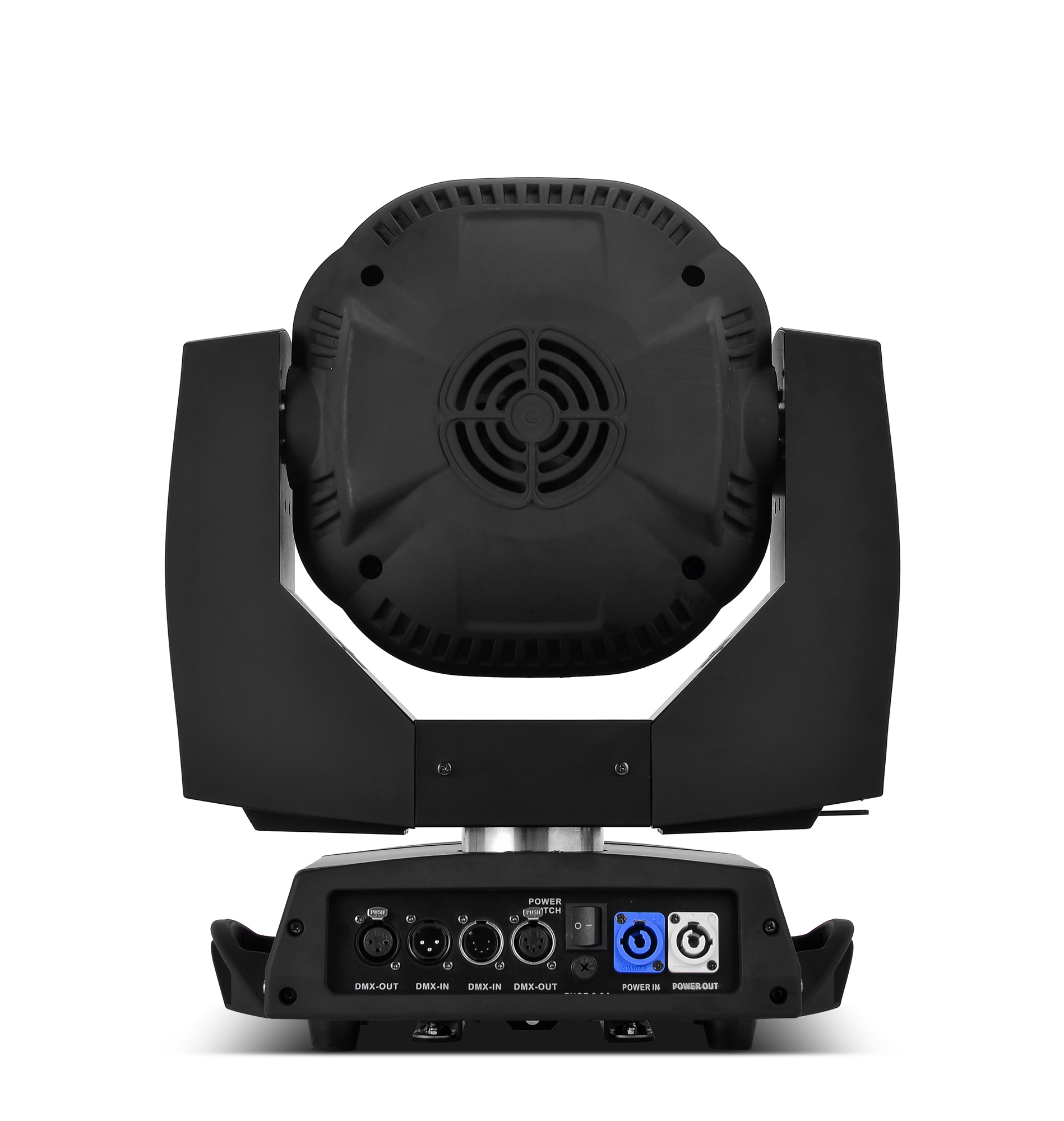

CONTROL AND PROGRAMMING DMX512: 3/5-pin XLR IN-OUT sockets 5 channel modes: Standard 21ch/Shapes 35ch/Extended 78ch/ Extended RGBW 96ch/Full 92ch Powercon connect: Power in/out Display: backlit black-and-white graphic LCD display
MOVING BODY Size:494*358*253mm Weight:15KGs Travel: PAN = 540°TILT = 210°
PACKING DIMENSION Carton Size:510*420*590mm G.W.:18KGs CHANNEL LIST VIDEO LINK
